DA600 - Mier Wireless Entry Alert

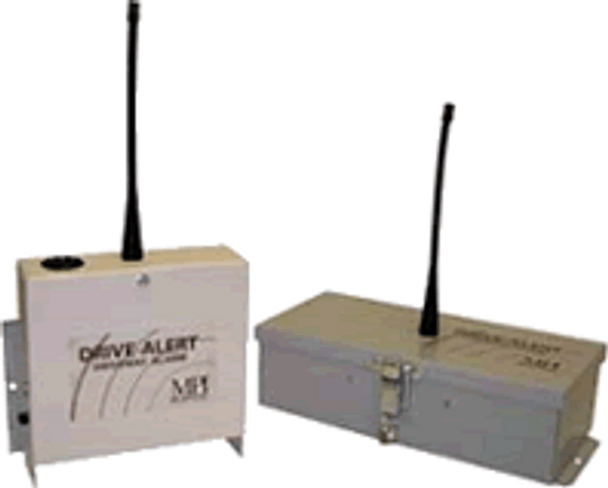

Mier DA-600 Wireless Driveway Sensor - Specifications

Mier DA-600 Driveway Alarm Control Panel

• INPUT POWER: 120 VOLTS AC 50-60 HZ, 3 WATTS
• OUTPUT POWER: 24 VOLTS DC AT 100 MILLIAMPERES
• FREQUENCY: 433.92 MHZ FIXED SUPERHETRODYNE
• ANTENNA: ¼ WAVE MONOPOLE FIXED BOLTED IN STEEL CASE 0 DBI GAIN
• RECEIVER: LINX TECHNOLOGIES MODEL LR
• DECODER: HOLTEK MODEL 658 IC TEN ADDRESS LINES 8 DIGITAL LINES.
• LAMPS/LEDS: POWER=RED, LO BATT=YELLOW, VALID XMSN=RED, ALARM=RED
• OUTPUT: PIEZO WHISTLE AND 24 VOLT RELAY OR FORM C DRY CONTACTS
• ALARM TIME: ADJUSTABLE 2 TO 12 SECONDS FOR EACH ALARM.
• OPERATING TEMP: 0 DEGREE F. TO +105 DEGREE F.
• WEIGHT: 2.5 POUNDS.

Mier DA-610 Driveway Sensor

• POWER REQUIREMENTS: TWO (2) SIZE AA (LR-6) BATTERIES 3.0 VOLTS DC
• OPERATING FREQUENCY: 433.92 MHZ FIXED
• ANTENNA: 1/4 WAVE MONOPOLE BOLTED INTO THE STEEL CASE. 0 DBI GAIN
• TRANSMITTER OUTPUT: 2 MILLIWATTS
• TRANSMITTER: LINX TECHNOLOGIES MODEL KH ENCODER/TRANSMITTER
• ENCODER MODULATION: AMPLITUDE ON-OFF KEYING (OOK) AT 1200 BPS.
• ADDRESS CODES: FOUR POSITION DIP SWITCH SELECTED FOR THE ENCODER
• DATA: ONE DATA BIT ENCODED WHEN BATTERY IS LOW.
• TRANSMITTER ON TIME: LESS THAN 5 SECONDS FOR ANY SINGLE ALARM
• ENCLOSURE: 18 GAUGE GALVANEAL PAINTED STEEL WITH WEATHER SEAL AND LOCKABLE LATCH CLOSURE.
• QUIESCENT CURRENT : 60 MICROAMP
• ACTIVE CURRENT: 3 MILLIAMP
• BATTERY LIFE: ABOUT ONE YEAR IN RESIDENTIAL USE.
• OPERATING TEMP: -40 DEGREES F TO + 125 DEGREES F
• WEIGHT: FOUR POUNDS
• DETECTION OF VEHICLES: DISTANCE FROM SENSOR/TRANSMITTER UNIT FOR STANDARD SEDAN MOVING AT 5 MPH= 14 FEET (MAX), 8 FEET (MID), 6 FEET (MIN)
• TRANSMISSION DISTANCE - MAXIMUM OF 1000'

Mier DA-600 Wireless Driveway Sensor - Included

• 1 - DA-600 Control Planel with Receiver*
• 1 - DA-610 Wireless Vehicle Sensor

*Call for pricing on the Mier Products Driveway Alarm Receivers

Mier DA-600 Wireless Driveway Sensor

The Mier Wireless Drive-Alert's sensor only detects cars, trucks, motorcycles, bicycles, or any large moving metal object. When a vehicle is detected, the sensor transmits a signal wirelessly to the control panel which sounds an electronic alert. The control panel also has the option of a 24 volt DC output or Form C dry contacts allowing to trigger other bells, chimes etc. or send a signal to an alarm panel or Home Security Camera System. An unlimited number of sensors can be used to protect multiple areas! The sensors can also be placed in or next to stationary equipment such as tractors, mobile homes, campers, gas tanks, trailers, etc. The Drive-Alert will sound an alarm if this equipment is moved, thus aiding in the prevention of theft or vandalism.

*This system is designed for driveways which are less than 1000' in length.
